The Story
Technical Spec :
Max TDP: 220
Heatsink Specifications:
Dimension: L120 mm x W48 mm x H154 mm
Weight: 500g

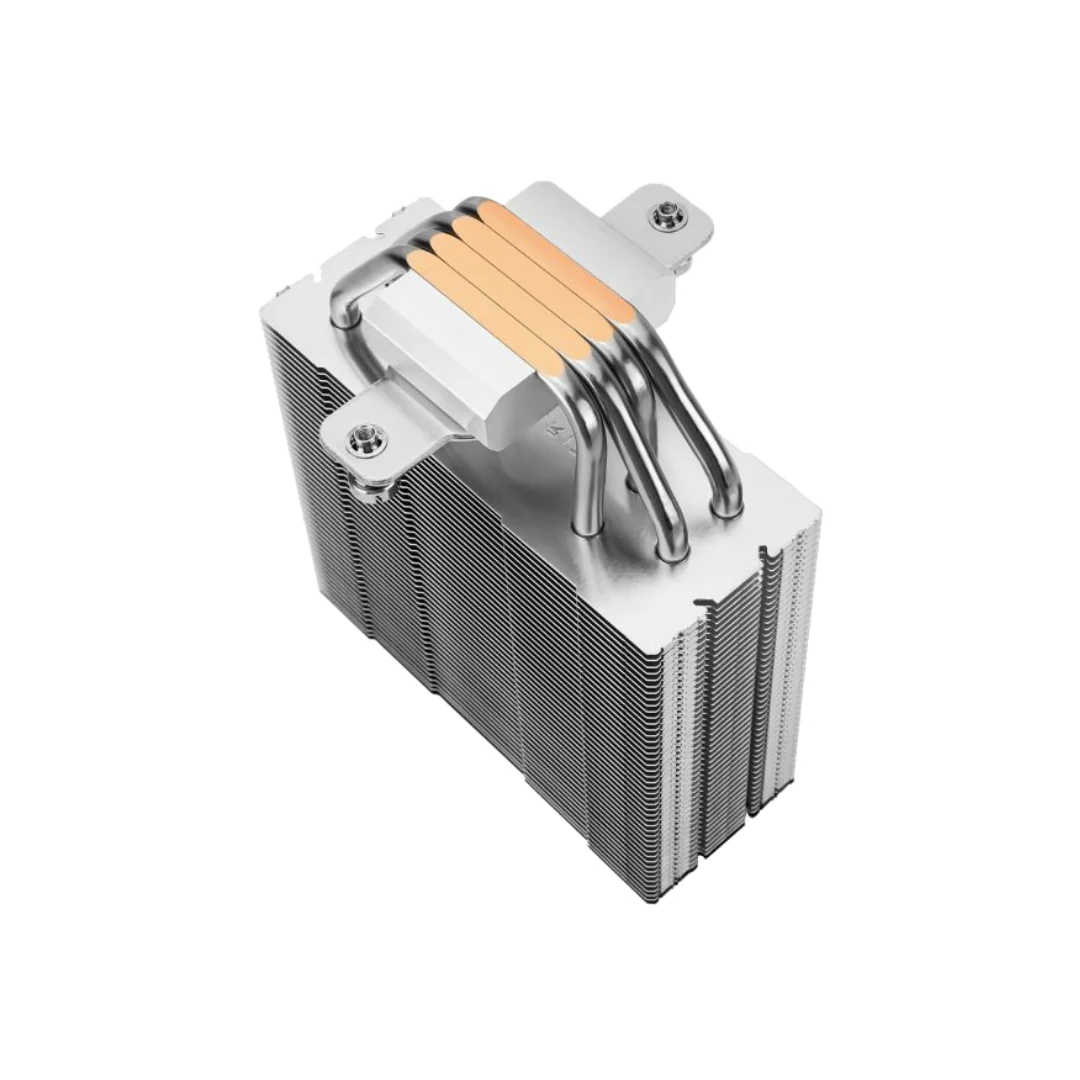

Heat pipes: 6mm heatpipe x 4 units
TL-C12 V2 FAN Spec：
Dimension: L120 mm x W120 mm x H25 mm
Rated Speed: 1500 RPM±10% (MAX)
Noise Level: 25.6 dBA
Air Flow: 66.17 CFM (MAX)
Air Pressure: 1.53 mm H2O (MAX)
Ampere: 0.20 A
Connector: 4 Pin (PWM Fan connector)
Bearing Type : S-FDB Bearing
TL-C12R V2 FAN Spec：
Dimension: L120 mm x W120 mm x H25 mm
Rated Speed: 1500 RPM±10% (MAX)
Noise Level: 25.6 dBA
Air Flow: 58 CFM (MAX)
Air Pressure: 1.53 mm H2O (MAX)
Ampere: 0.20 A
Connector: 4 Pin (PWM Fan connector)
Bearing Type : S-FDB Bearing
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Technical Spec :
Max TDP: 220
Heatsink Specifications:
Dimension: L120 mm x W48 mm x H154 mm
Weight: 500g
Heat pipes: 6mm heatpipe x 4 units
TL-C12 V2 FAN Spec：
Dimension: L120 mm x W120 mm x H25 mm
Rated Speed: 1500 RPM±10% (MAX)
Noise Level: 25.6 dBA
Air Flow: 66.17 CFM (MAX)
Air Pressure: 1.53 mm H2O (MAX)
Ampere: 0.20 A
Connector: 4 Pin (PWM Fan connector)
Bearing Type : S-FDB Bearing
TL-C12R V2 FAN Spec：
Dimension: L120 mm x W120 mm x H25 mm
Rated Speed: 1500 RPM±10% (MAX)
Noise Level: 25.6 dBA
Air Flow: 58 CFM (MAX)
Air Pressure: 1.53 mm H2O (MAX)
Ampere: 0.20 A
Connector: 4 Pin (PWM Fan connector)
Bearing Type : S-FDB Bearing
