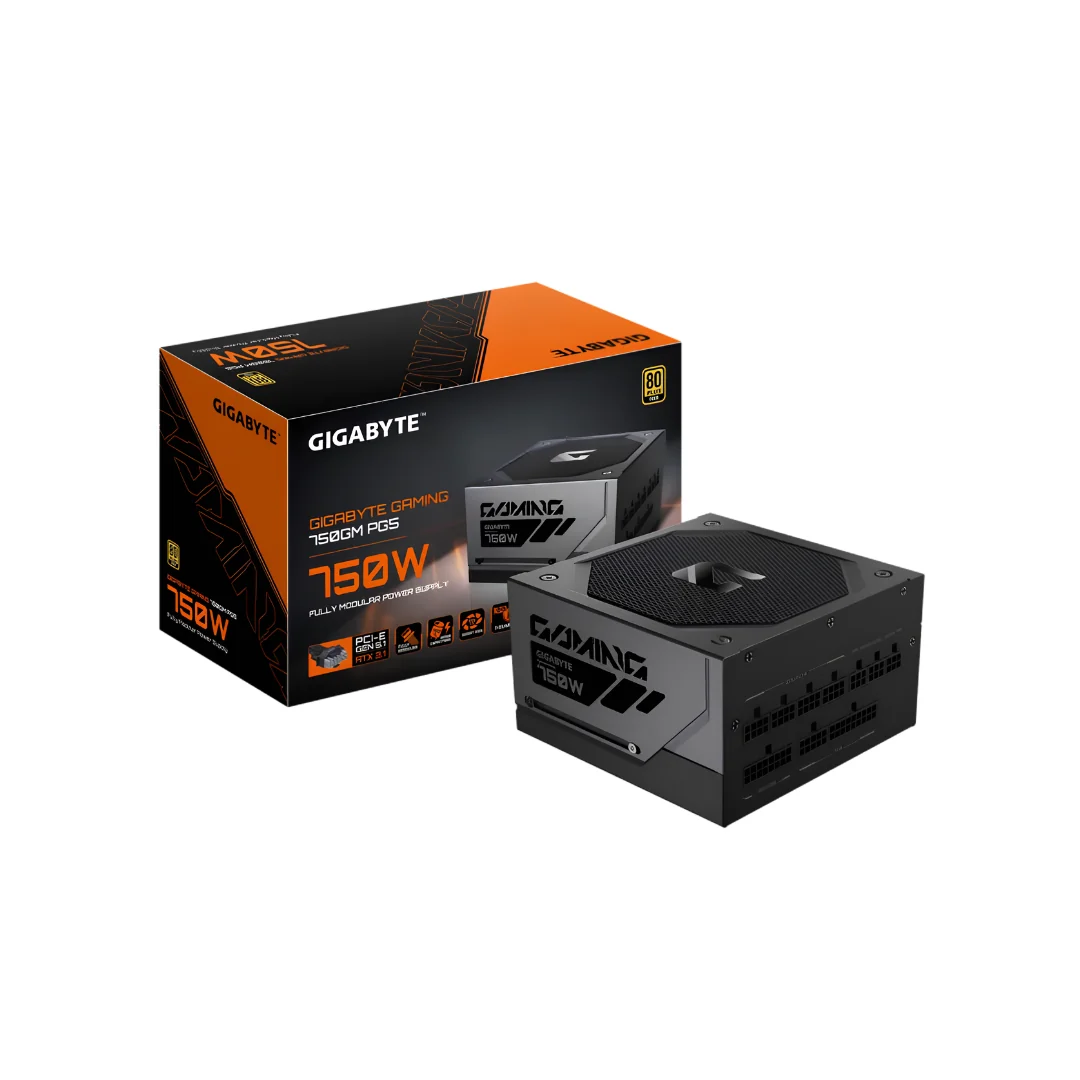

Gigabyte Gaming 750GM PG5 GOLD 750W 80+ Full Modular Power Supply GP-GME750GM PG5

Model: GP-GME750GM PG5
Type: Intel Form Factor ATX 12V v3.1
PFC: Active PFC (>0.9 typical)
Input Voltage: 100-240 Vac
Input Current: 10-5A
Input Frequency: 50-60 Hz
Output Capacity: 750W
Dimensions: 150 x 150 x 86mm

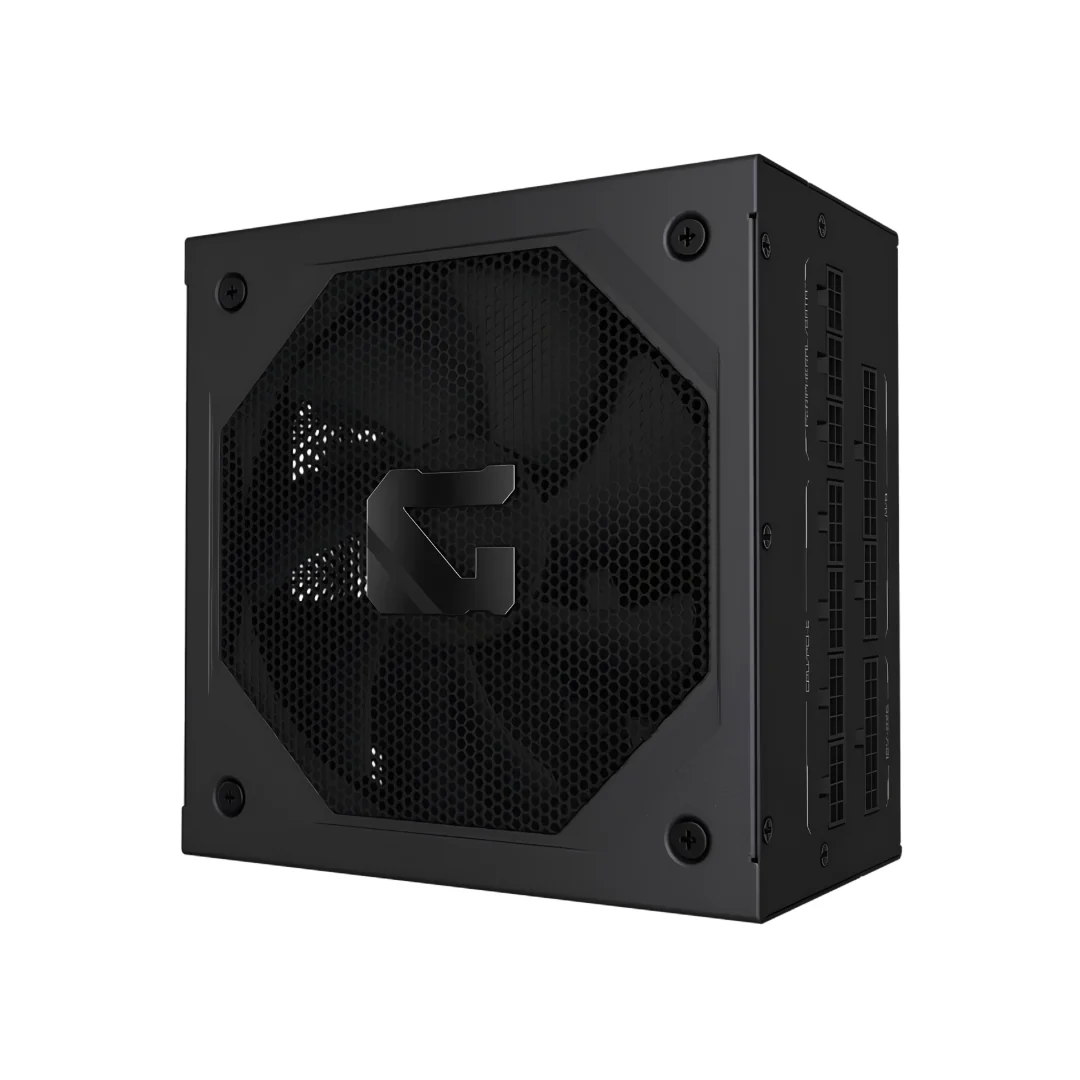

Fan Type: 135mm FDB Fan
80 PLUS: Gold
Efficiency: 90% at typical load
MTBF: >100,000 hours
Protections: OVP / OPP / SCP / UVP / OCP / OTP / NLO / SIP
Power Good Signal: 100-150ms
Hold Up Time: >17ms(80% load)
Cable Type: Embossed, All black

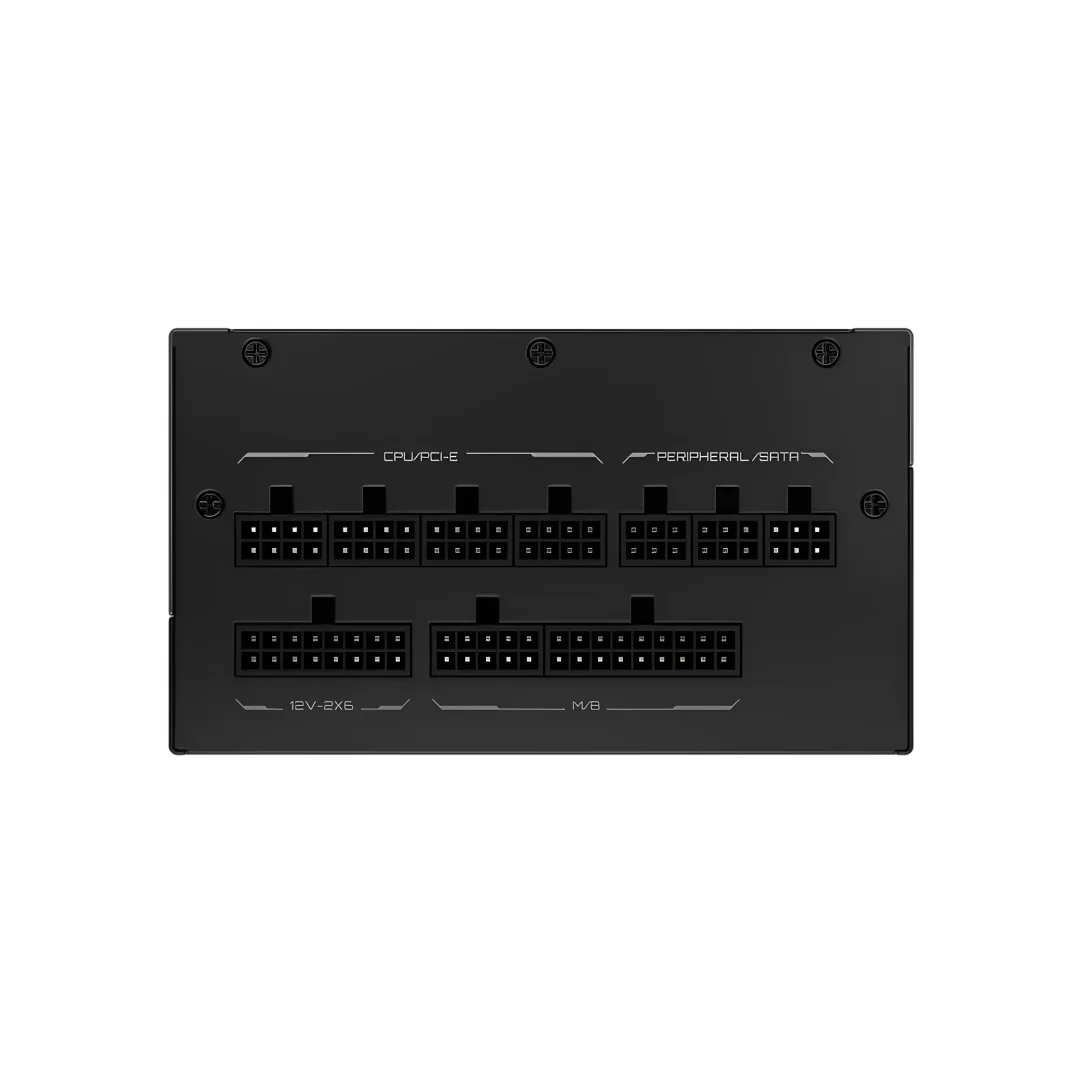

Connectors: ATX/MB 20+4 Pin x 1 : 610mm*1, CPU/EPS 4+4 Pin x 2 : 600mm*2, PCI-e 16 Pin x 1: 700mm*1, PCI-e 6+2 Pin x 4 : 600mm+150mm*2, SATA x 8 : 600mm+150mm+150mm+150mm*2 4 Pin Peripheral x 4 : 500mm+150mm+150mm+150mm*1
