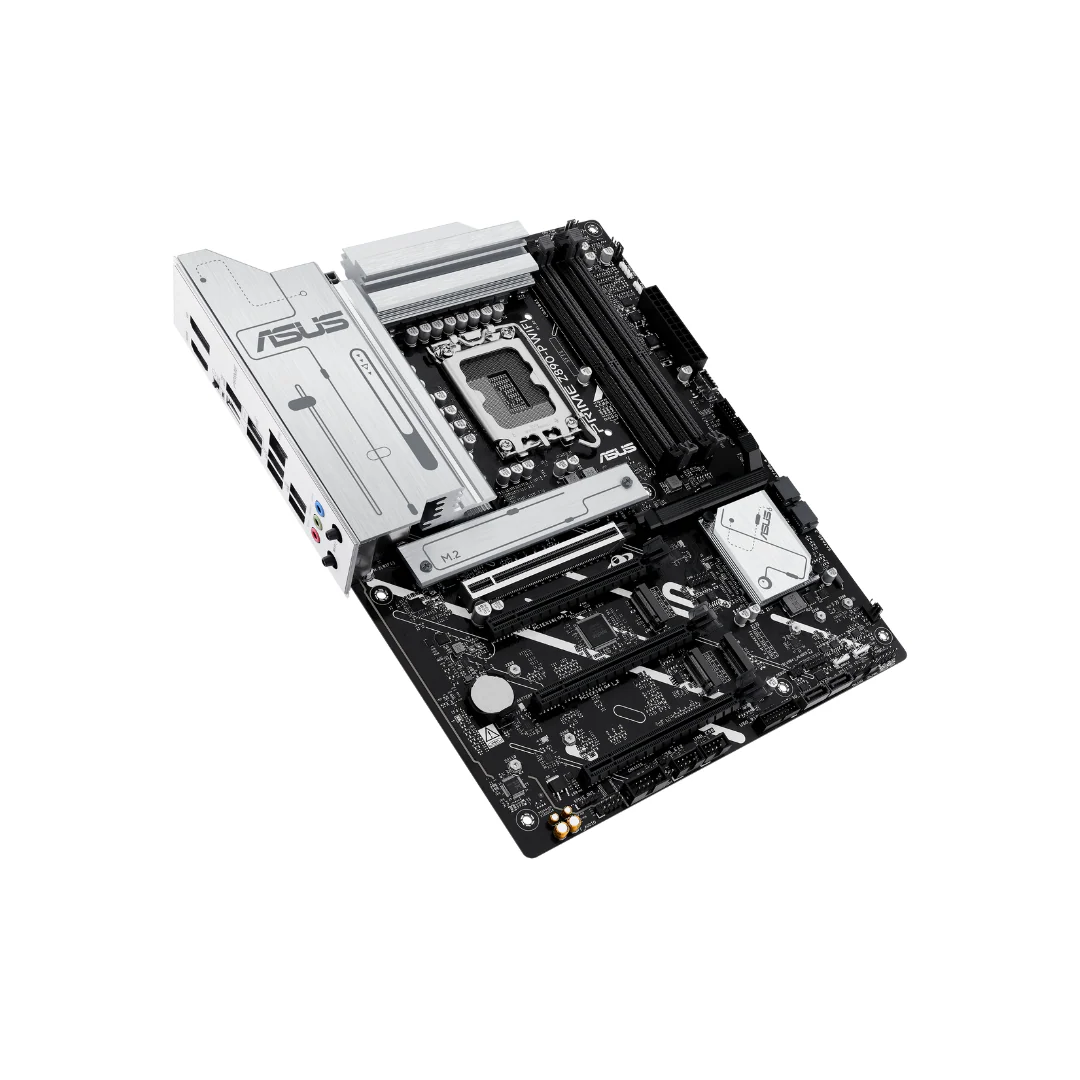

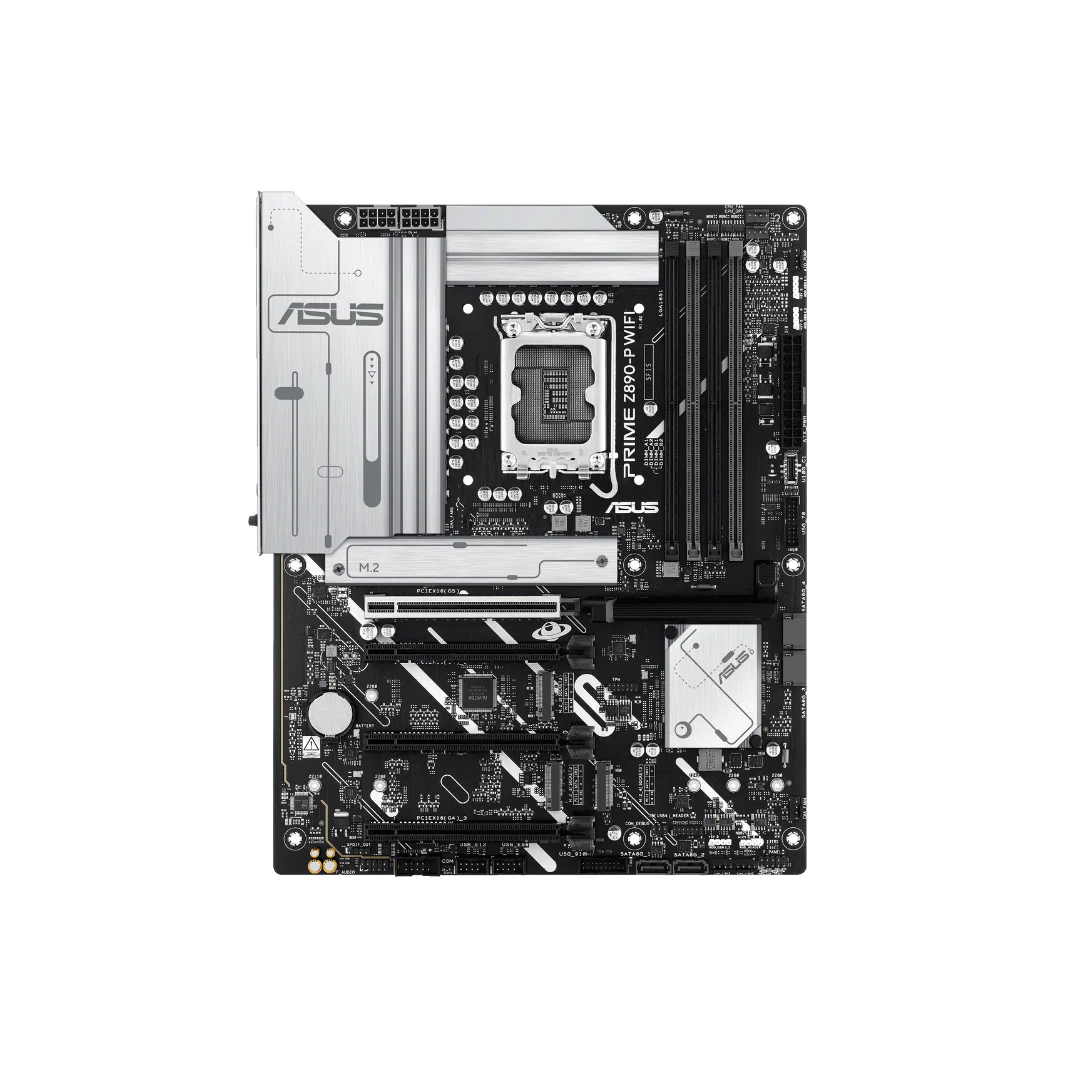

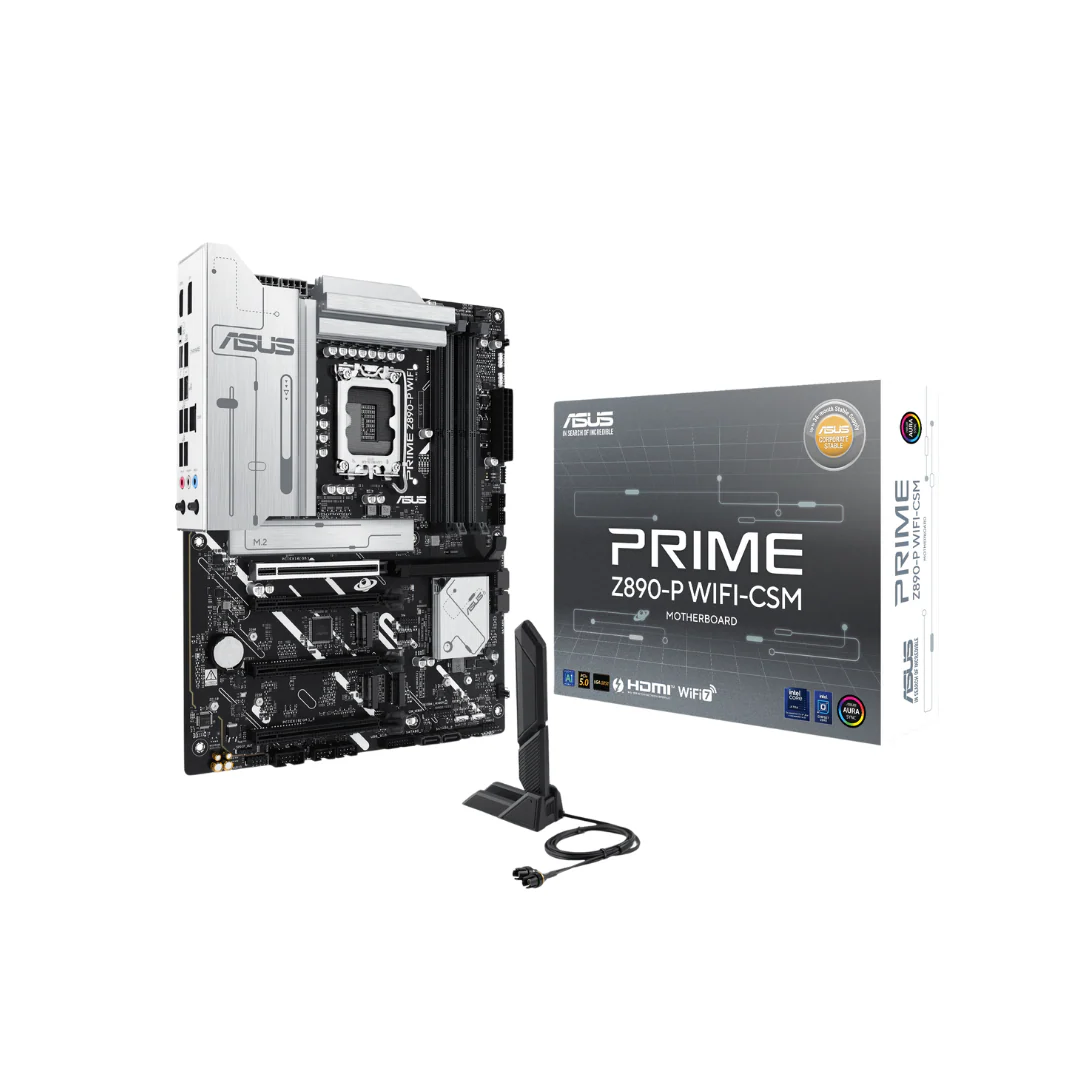

Asus Prime Z890-P WiFi-CSM 4*D5 ATX WiFi7 LGA1851 Motherboard—
$300.56
The Story
- Model: PRIME Z890-P WIFI-CSM
- CPU: Supports Intel® Core™ Ultra Processors (Series 2), LGA1851, Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
- Chipset: Intel® Z890 Chipset
- Memory: 4 x DIMM slots, max. 256GB, DDR5, Support up to 8666+MT/s (OC),Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM), Dual channel memory architecture, DIMM Fit, Supports Intel® Extreme Memory Profile (XMP) memory module, ASUS Enhanced Memory Profile III(AEMPIII)
- Graphics: 1 x DisplayPort, 1 x HDMITM port, 1 x Intel® Thunderbolt™ 4 port (USB Type-C®) supports DisplayPort and Thunderbolt™ video outputs
- Expansion Slots: Intel® Core™ Ultra Processors (Series 2): 1 x PCIe 5.0 x16 slot, Intel® Z890 Chipset: 2 x PCIe 4.0 x16 slots (support x4 mode), 1 x PCIe 4.0 x16 slot (supports x1 mode)
- Storage: Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports, Intel® Core™ Ultra Processors (Series 2): M.2_1 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode), M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), Intel® Z890 Chipset: M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode), M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes), 4 x SATA 6Gb/s ports
- Ethernet: 1 x Realtek 2.5Gb Ethernet, ASUS LANGuard
- Wireless & Bluetooth: Wi-Fi 7, 2x2 Wi-Fi 7 (802.11be), Supports 2.4/5/6GHz frequency band, Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate, Bluetooth® v5.4
- USB: Rear USB (Total 8 ports: 1 x Thunderbolt™ 4 port (1 x USB Type-C®), 1 x USB 10Gbps port (1 x Type-A), 2 x USB 5Gbps ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A)), Front USB (Total 9 ports: 1 x USB 10Gbps connector (supports USB Type-C®), 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports, USB Type-C® power delivery output: max. 5V/3A)
- Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC (Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, Supports up to 24-Bit/192 kHz playback), Audio Features (Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers)
- Back Panel I/O Ports: 1 x Thunderbolt™ 4 USB Type-C® port, 1 x USB 10Gbps port (1 x Type-A), 2 x USB 5Gbps ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A), 1 x DisplayPort, 1 x HDMITM port, 1 x Wi-Fi module, 1 x Realtek 2.5Gb Ethernet port, 3 x Audio jacks, 1 x BIOS FlashBack™ button
-
Internal I/O Connectors: Fan and Cooling related: 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 4 x 4-pin Chassis Fan headers, Power related: 1 x 24-pin Main Power connector, 2 x 8-pin +12V CPU Power connector, Storage related: 4 x M.2 slots (Key M), 4 x SATA 6Gb/s ports, USB: 1 x USB 10Gbps connector (supports USB Type-C®), 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports, Miscellaneous: 3 x Addressable Gen2 headers, 1 x Aura RGB header, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (F_AUDIO), 1 x S/PDIF Out header, 1 x SPI TPM header (14-1pin), 1 x 10-1 pin Front Panel System header, 1 x Thunderbolt™ (USB4®) header
- BIOS: 256 (128+128) Mb Flash ROM, UEFI AMI BIOS
- Manageability: WOL by PME, PXE
- Accessories: Cables: 2 x SATA 6Gb/s cables, Miscellaneous: 1 x ASUS WiFi Q-Antenna, 1 x M.2 rubber package, 2 x Screw packages for M.2 SSD, Documentation, 1 x Quick start guide
- Operating System: Windows 11 (22H2 & later)
- Form Factor: ATX Form Factor, 12 inch x 9.6inch ( 30.5 cm x 24.4 cm )
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
- Model: PRIME Z890-P WIFI-CSM
- CPU: Supports Intel® Core™ Ultra Processors (Series 2), LGA1851, Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
- Chipset: Intel® Z890 Chipset
- Memory: 4 x DIMM slots, max. 256GB, DDR5, Support up to 8666+MT/s (OC),Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM), Dual channel memory architecture, DIMM Fit, Supports Intel® Extreme Memory Profile (XMP) memory module, ASUS Enhanced Memory Profile III(AEMPIII)
- Graphics: 1 x DisplayPort, 1 x HDMITM port, 1 x Intel® Thunderbolt™ 4 port (USB Type-C®) supports DisplayPort and Thunderbolt™ video outputs
- Expansion Slots: Intel® Core™ Ultra Processors (Series 2): 1 x PCIe 5.0 x16 slot, Intel® Z890 Chipset: 2 x PCIe 4.0 x16 slots (support x4 mode), 1 x PCIe 4.0 x16 slot (supports x1 mode)
- Storage: Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports, Intel® Core™ Ultra Processors (Series 2): M.2_1 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode), M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), Intel® Z890 Chipset: M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode), M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes), 4 x SATA 6Gb/s ports
- Ethernet: 1 x Realtek 2.5Gb Ethernet, ASUS LANGuard
- Wireless & Bluetooth: Wi-Fi 7, 2x2 Wi-Fi 7 (802.11be), Supports 2.4/5/6GHz frequency band, Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate, Bluetooth® v5.4
- USB: Rear USB (Total 8 ports: 1 x Thunderbolt™ 4 port (1 x USB Type-C®), 1 x USB 10Gbps port (1 x Type-A), 2 x USB 5Gbps ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A)), Front USB (Total 9 ports: 1 x USB 10Gbps connector (supports USB Type-C®), 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports, USB Type-C® power delivery output: max. 5V/3A)
- Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC (Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, Supports up to 24-Bit/192 kHz playback), Audio Features (Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers)
- Back Panel I/O Ports: 1 x Thunderbolt™ 4 USB Type-C® port, 1 x USB 10Gbps port (1 x Type-A), 2 x USB 5Gbps ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A), 1 x DisplayPort, 1 x HDMITM port, 1 x Wi-Fi module, 1 x Realtek 2.5Gb Ethernet port, 3 x Audio jacks, 1 x BIOS FlashBack™ button
-
Internal I/O Connectors: Fan and Cooling related: 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 4 x 4-pin Chassis Fan headers, Power related: 1 x 24-pin Main Power connector, 2 x 8-pin +12V CPU Power connector, Storage related: 4 x M.2 slots (Key M), 4 x SATA 6Gb/s ports, USB: 1 x USB 10Gbps connector (supports USB Type-C®), 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports, Miscellaneous: 3 x Addressable Gen2 headers, 1 x Aura RGB header, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (F_AUDIO), 1 x S/PDIF Out header, 1 x SPI TPM header (14-1pin), 1 x 10-1 pin Front Panel System header, 1 x Thunderbolt™ (USB4®) header
- BIOS: 256 (128+128) Mb Flash ROM, UEFI AMI BIOS
- Manageability: WOL by PME, PXE
- Accessories: Cables: 2 x SATA 6Gb/s cables, Miscellaneous: 1 x ASUS WiFi Q-Antenna, 1 x M.2 rubber package, 2 x Screw packages for M.2 SSD, Documentation, 1 x Quick start guide
- Operating System: Windows 11 (22H2 & later)
- Form Factor: ATX Form Factor, 12 inch x 9.6inch ( 30.5 cm x 24.4 cm )
